Hikvision · Access Controllers

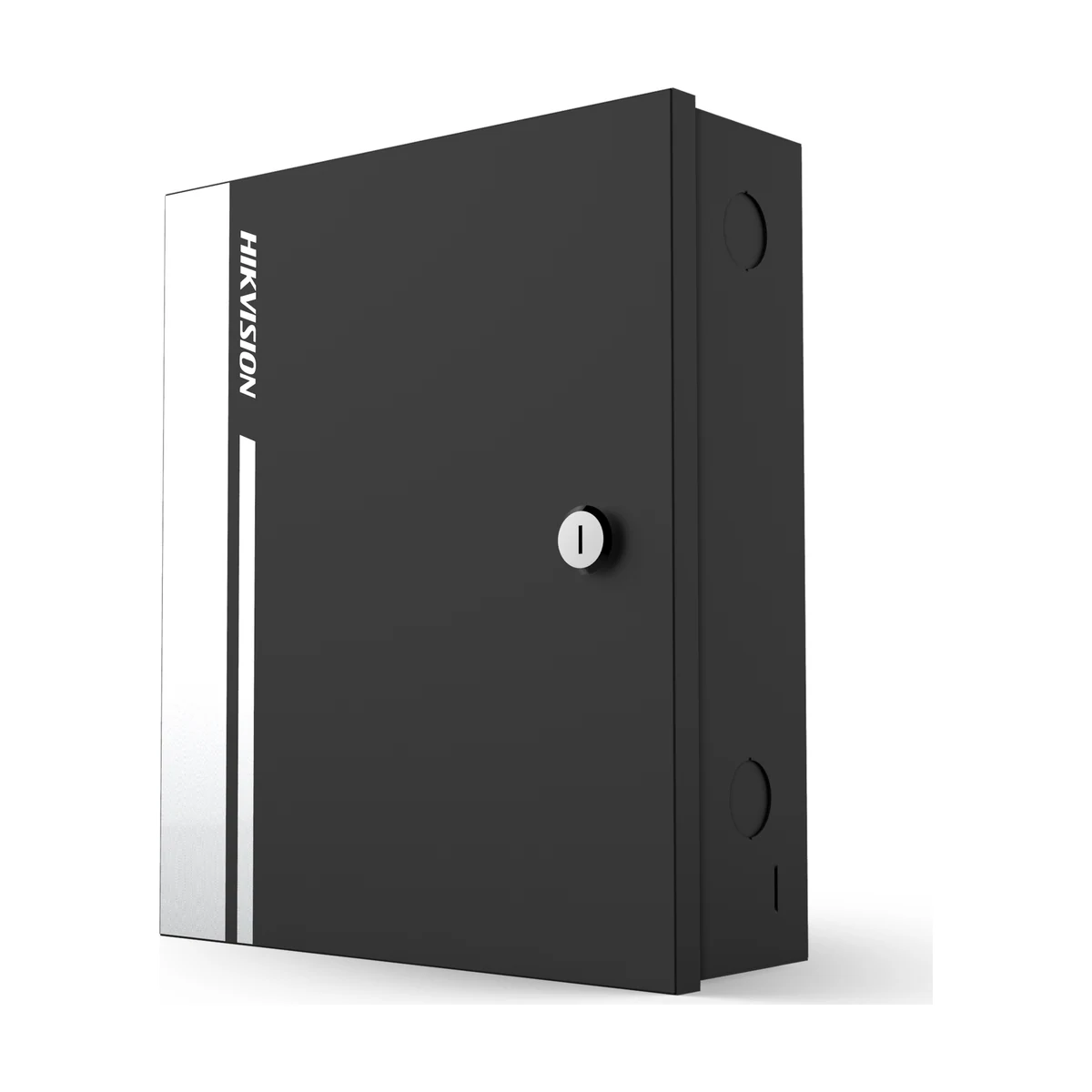

Hikvision DS-K2801/02/04 Access Controller
The Hikvision DS-K2801/02/04 comes in 3 models (DS-K2801, DS-K2802, DS-K2804), compared side by side below.
- Storage
- Card: 10,000, Event: 50,000
AIVIZ supplies the DS-K2801/02/04 in Dubai and across the UAE and wires it with Hikvision readers, terminals, locks and exit buttons as one access control system. Call +971 50 202 5767.
DS-K2801/02/04 specifications
As published in Hikvision's access control brochure. Ask us which version suits your doors.
- Working Voltage
- 12 VDC
- Input Voltage
- 100-240 VAC
- Uplink Communication Interface
- TCP / IP
- Downlink Communication Interface
- Wiegand
- Storage
- Card: 10,000 Event: 50,000
- Built-in Clock
- Yes
- Accessible Card Reader
- Wiegand Reader: 2/4/4
- Input Interface
- Case Input: 1/2/4 Door Sensor: 1/2/4 Exit Button: 1/2/4
- Output Interface
- Lock Relay: 1/2/4 Alarm Output: 1/2/4
- Operating Temperature
- -20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity
- 10% to 90% (Non-Condensing)
- Dimensions (L × W × H)
- 285 mm × 237 mm × 69 mm (11.22" × 9.33" × 2.72")
Models covered on this page
- DS-K2801
- DS-K2802
- DS-K2804
More Hikvision Access Controllers
All access controllers
Hikvision · Access Controller
DS-K2701X
Controls 1 door. Can be extended to up to 62 DS-K2M002X access modules, and control up to 125 doors · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 200,000, Event capacity 600,000
View details
Hikvision · Access Controller

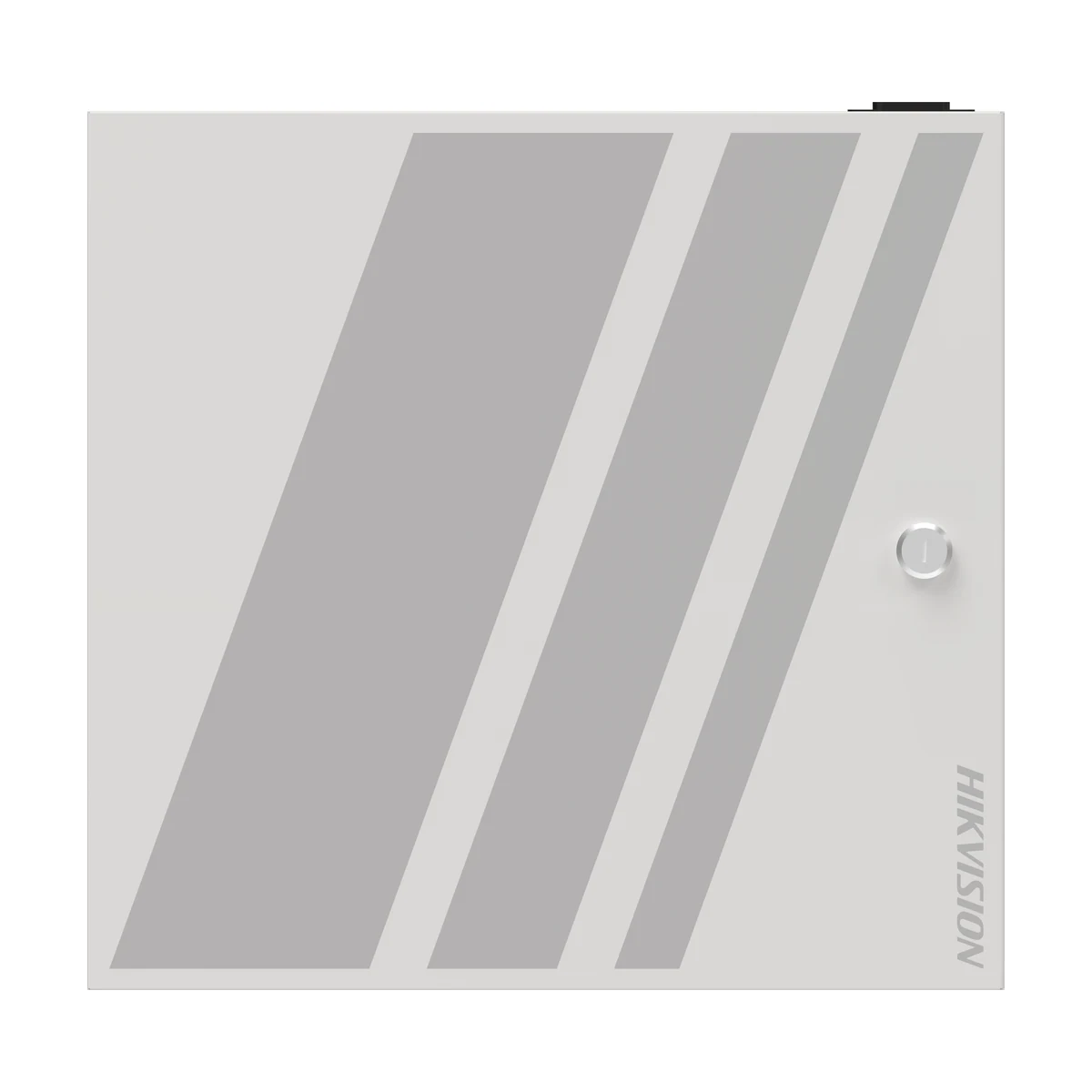

DS-K2702X
Controls 2 doors. Can be extended to up to 62 DS-K2M002X access modules, and control up to 126 doors · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 200,000, Event capacity 600,000
View details
Hikvision · Access Controller
DS-K2704X
Controls 4 doors. Can be extended up to 62 DS-K2M002X access modules, and control up to 128 doors · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 200,000, Event capacity 600,000
View details
Hikvision · Access Controller

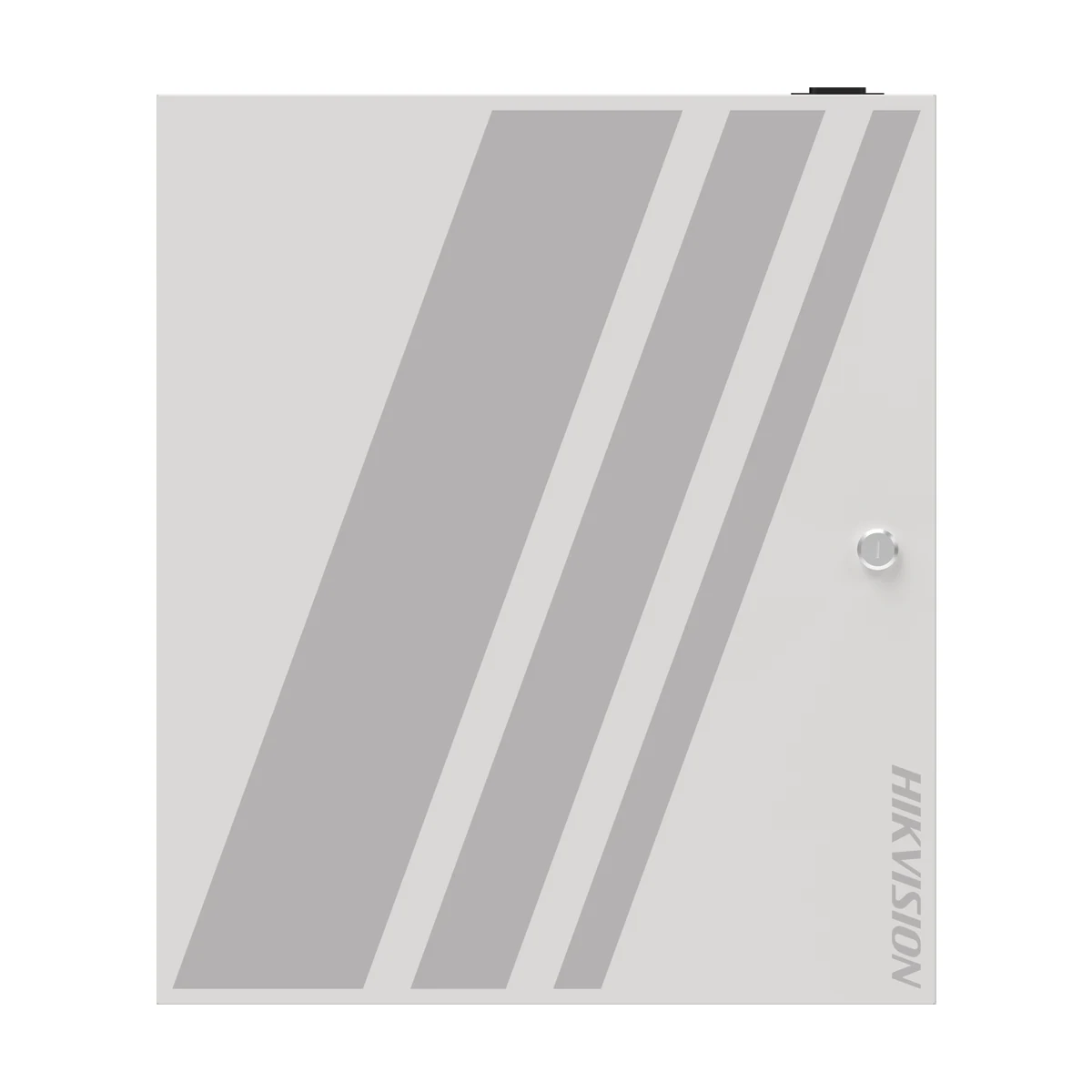

DS-K2708X
Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-door access controller · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 200,000, Event capacity 600,000
View details
Hikvision · Access Module

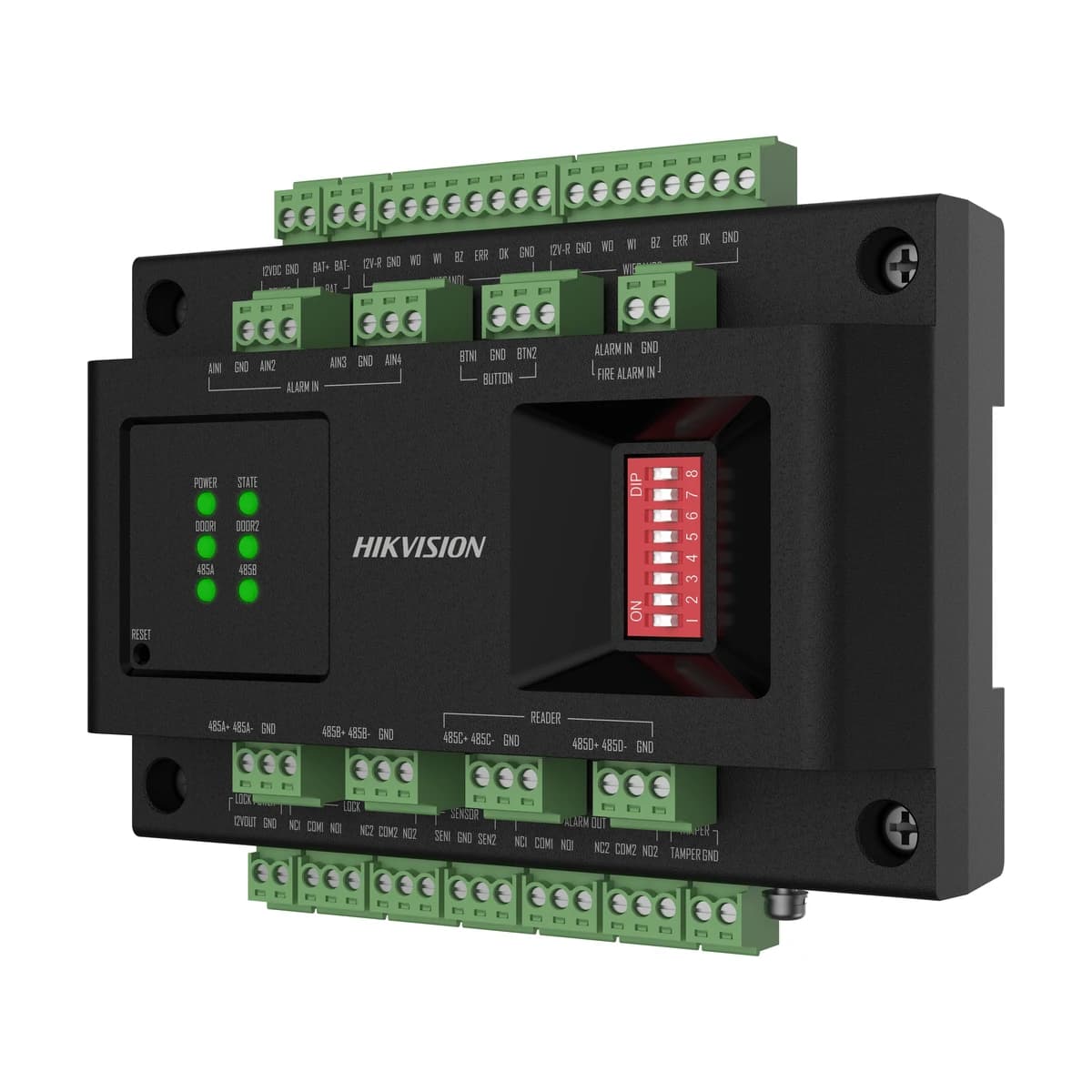

DS-K2M002X
Controls 2 doors. It can connect with access controller via RS-485 · 12 ± 15% VDC
View details
Hikvision · Access Controller
DS-K2621X
1 door control · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 100,000, Event capacity 300,000
View details
Hikvision · Access Controller

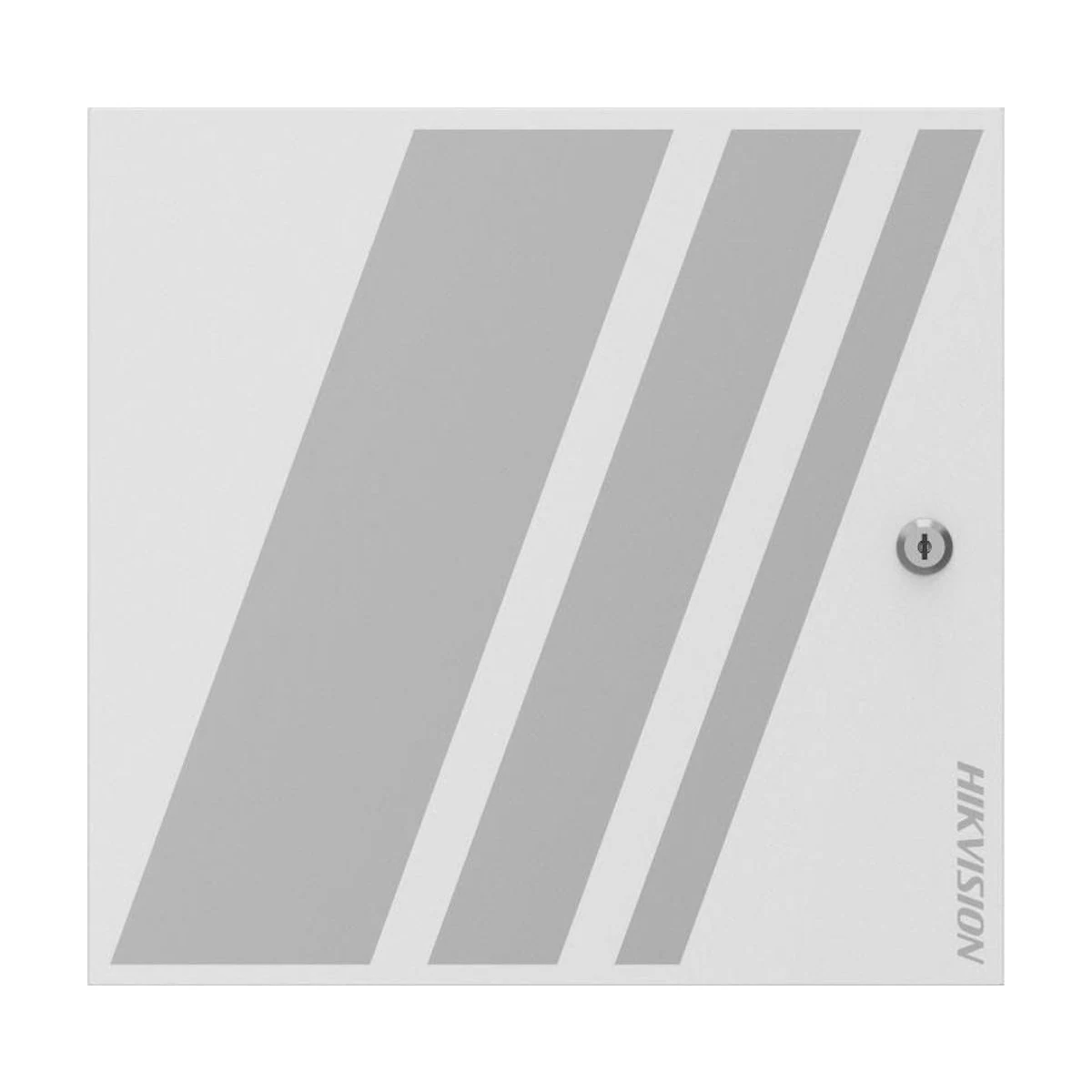

DS-K2622X
2 doors control · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 100,000, Event capacity 300,000
View details
Hikvision · Access Controller
DS-K2624X
4 doors control · User capacity 100,000, Fingerprint capacity 10,000, Card capacity 100,000, Event capacity 300,000
View details
Hikvision supplier in Dubai
Get a price for the Hikvision DS-K2801/02/04 Access Controller
Tell us about your doors, gates and number of users. We'll confirm the right Hikvision models and send a quotation for supply and installation.
