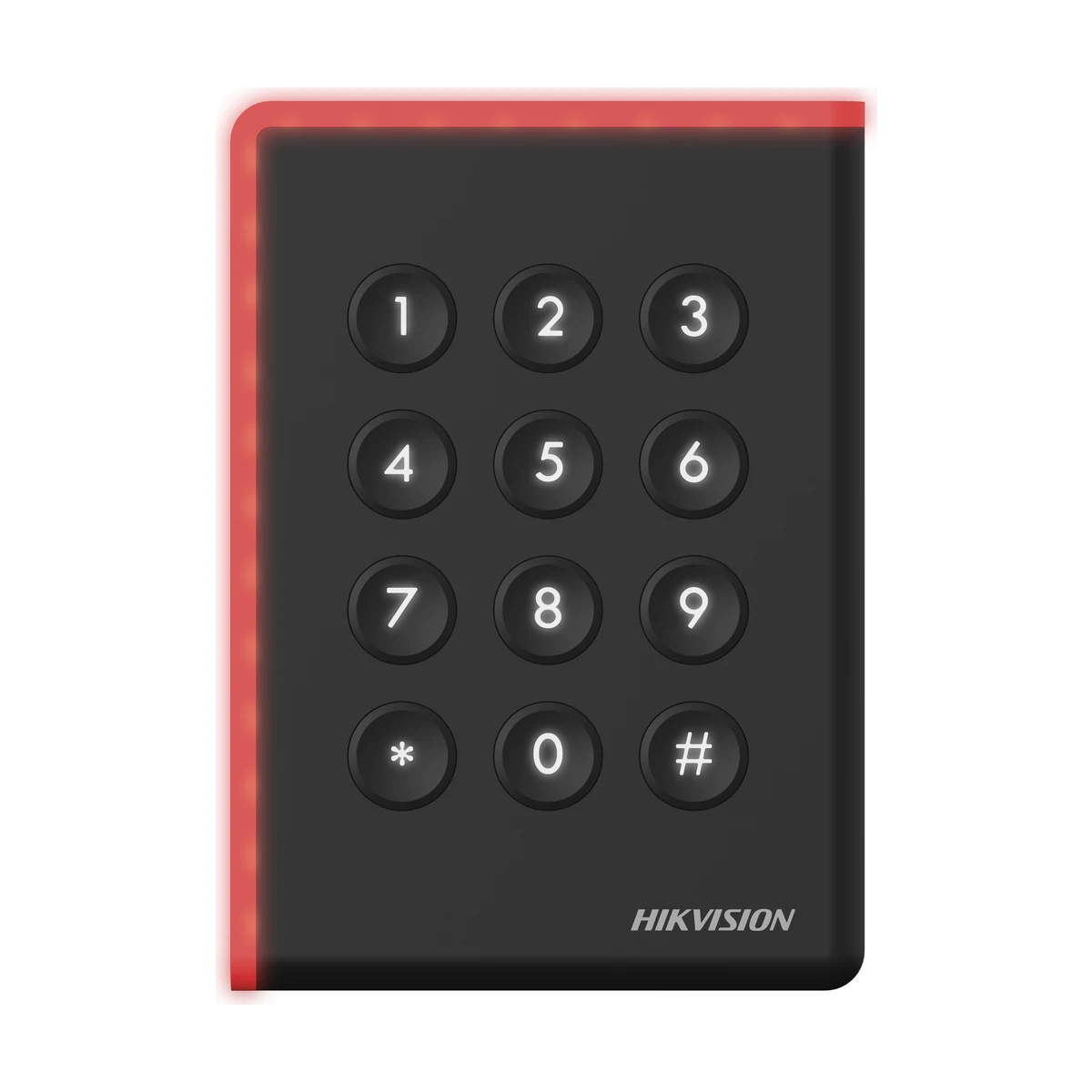

Hikvision DS-K1108 Series Card Reader

The Hikvision DS-K1108 Series comes in 6 models (DS-K1108AE, DS-K1108AM, DS-K1108AD, DS-K1108AEK, DS-K1108AMK, DS-K1108ADK), compared side by side below.

Reading Frequency: 125 KHz (For E Series)/13.56 MHz (For, M&D Series)
Reading Range: EM Card: ≤100 mm (≤ 3.94"), M1 Card: ≤50 mm (≤ 1.97"), Desfire Card: ≤30 mm (≤ 1.18"), Felica Card: ≤30 mm (≤ 1.18")
Communication Mode: RS485 / Wiegand
Protection Level: IP65

Get a quote WhatsApp us

AIVIZ supplies the DS-K1108 Series in Dubai and across the UAE, installs it at your doors and can connect it to AiTime, our attendance software, for shift, overtime and payroll reports. Call +971 50 202 5767.

DS-K1108 Series specifications

As published in Hikvision's access control brochure. Ask us which version suits your doors.

Reading Frequency: 125 KHz (For E Series)/13.56 MHz (For M&D Series)
Reading Range: EM Card: ≤100 mm (≤ 3.94") M1 Card: ≤50 mm (≤ 1.97") Desfire Card: ≤30 mm (≤ 1.18") Felica Card: ≤30 mm (≤ 1.18")
Shell Material: PC + ABS
Communication Mode: RS485 / Wiegand
ID Settings: Via DIP Switch
Audio Alert: Beeper
Power: 12 VDC
Power Consumption: ≤2 W
LED Indicator: Power Indicator; LED status Indicator
Operating Temperature: -20°C to 65°C (-4°F to 149°F)
Operating Humidity: 10% to 90% (Non-condensing)
Protection Level: IP65
Dimensions (L × W × H): 123 mm × 88 mm × 21 mm (4.53"× 3.46" × 0.83")
Installation Method: Wall Mounting with Screws; 86 & 120 Gang Box

Models covered on this page

DS-K1108AE
DS-K1108AM
DS-K1108AD
DS-K1108AEK
DS-K1108AMK
DS-K1108ADK

Need employee attendance as well as door access? AIVIZ connects Hikvision terminals to AiTime, our attendance software, for shifts, overtime and payroll export.
