Hikvision · Visitor & Payment Terminals

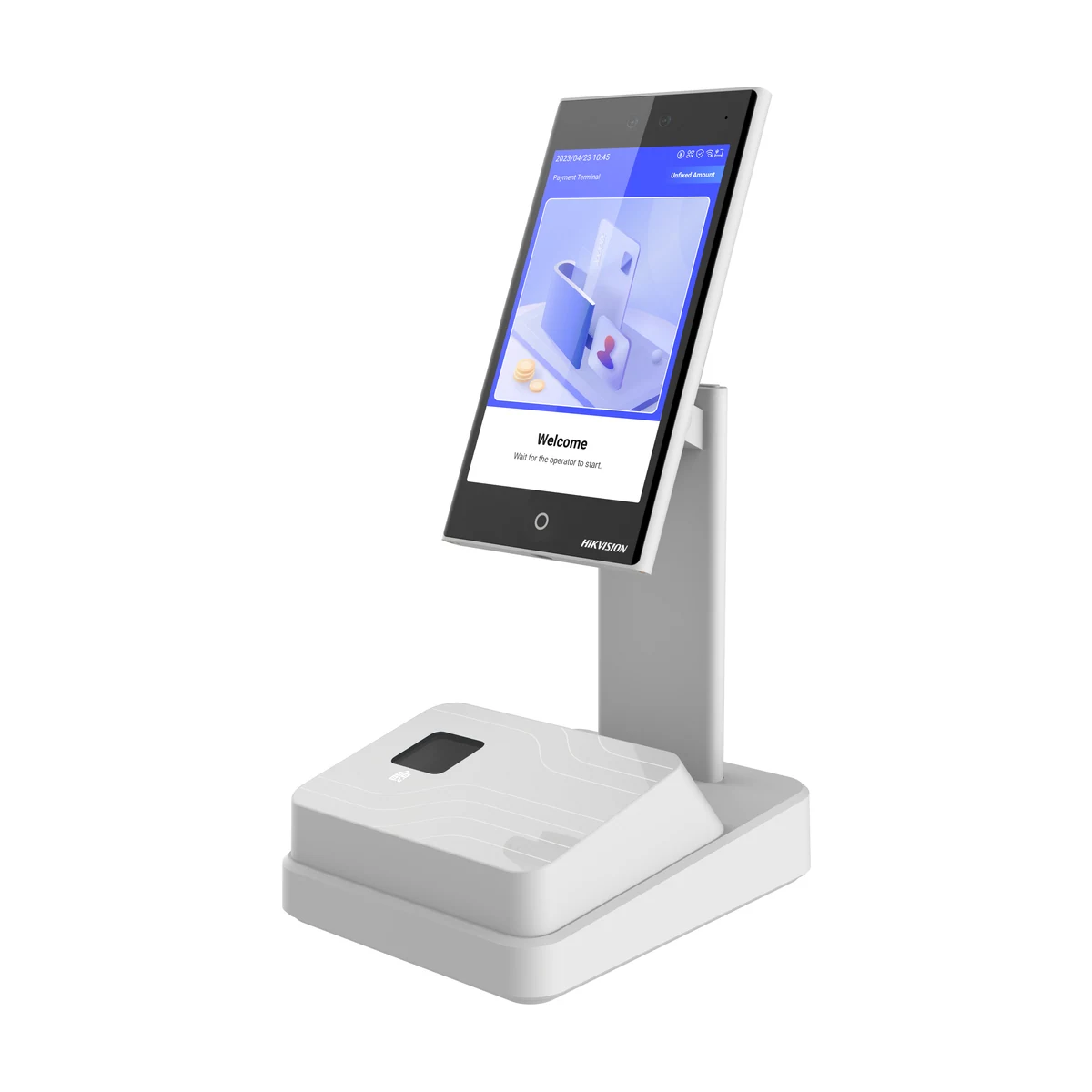

Hikvision DS-K6301X Payment Terminal
The Hikvision DS-K6301X comes in 3 models (DS-K6301X-T, DS-K6301X-DT, DS-K6301X-Z), compared side by side below.
- Operation System
- Android 11
- Screen Size
- 8-inch IPS touch screen
- Capacity
- Face : 100,000, Card : 500,000, Event : 500,000
AIVIZ supplies the DS-K6301X in Dubai and across the UAE, installs it at your doors and can connect it to AiTime, our attendance software, for shift, overtime and payroll reports. Call +971 50 202 5767.
DS-K6301X specifications
All 3 versions side by side, as published in Hikvision's access control brochure. Scroll sideways on a phone to see every version. Ask us which version suits your doors.
| Model | DS-K6301X-T | DS-K6301X-DT | DS-K6301X-Z |
|---|---|---|---|
| Operation System | Android 11 | Android 11 | Android 11 |
| Screen Size | 8-inch IPS touch screen | Dual-screen design Main screen (for consumer): 8-inch IPS touch screen sub screen (for operator): 4.3-inch IPS display screen | 8-inch IPS touch screen |
| Screen Resolution | 800 × 1280 | Main Screen (Operator): 800 × 1280 Auxiliary Screen (Visitor): 480 × 272 | 800 × 1280 |
| Camera | 2 MP wide-angle lens | 2 MP wide-angle lens | 2 MP wide-angle lens |
| Capacity | Face : 100,000 Card : 500,000 Event : 500,000 | Face : 100,000 Card : 500,000 Event : 500,000 | Face : 100,000 Card : 500,000 Event : 500,000 |
| Wi-Fi | Support, 2.4G, 802.11 b/g/n | Support, 2.4G, 802.11 b/g/n | Support, 2.4G, 802.11 b/g/n |
| Card Reading Distance | 0 cm to 5 cm | 0 cm to 5 cm | 0 cm to 5 cm |
| Power Supply | 12 VDC to 16 VDC | 12 VDC to 16 VDC | 12 VDC to 16 VDC |
| Interface | Network interface × 1; USB × 1 | Network interface × 1; USB × 1 | Network interface × 1; USB × 1 |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) | -10 °C to 50 °C (14 °F to 122 °F) | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (Non-Condensing) | 10% to 90% (Non-Condensing) | 10% to 90% (Non-Condensing) |
| Weight | 2.1 kg (4.6 lb) | 2.3 kg (5.1 lb) | 2.1 kg (4.6 lb) |
| Dimensions (L × W × H) | 172.9 mm × 387.9 mm × 217.9 mm (6.8" × 15.3" × 8.6") | 172.9 mm × 387.9 mm × 261 mm (6.8" × 15.3" × 10.3") | 172.9 mm × 387.9 mm × 217.9 mm (6.8" × 15.3" × 8.6") |
Models covered on this page
- DS-K6301X-T
- DS-K6301X-DT
- DS-K6301X-Z
Need employee attendance as well as door access? AIVIZ connects Hikvision terminals to AiTime, our attendance software, for shifts, overtime and payroll export.
Hikvision attendance softwareMore Hikvision Visitor & Payment Terminals
All visitor & payment terminals
Hikvision supplier in Dubai
Get a price for the Hikvision DS-K6301X Payment Terminal
Tell us about your doors, gates and number of users. We'll confirm the right Hikvision models and send a quotation for supply and installation.
