Hikvision DS-K1T673 Face Recognition Terminal

7-inch Pro and Ultra terminal: up to 100,000 faces, on-screen DESFire card reading, 4G, IP68 and temperature versions.

7-inch touch screen
Up to 100,000 faces (Ultra)
M1, FeliCa & DESFire
IP65 / IP68, PoE & 4G options

Get a quote WhatsApp us

Supplied, installed and supported by AIVIZ in Dubai and across the UAE. Call +971 50 202 5767.

Overview

About the DS-K1T673

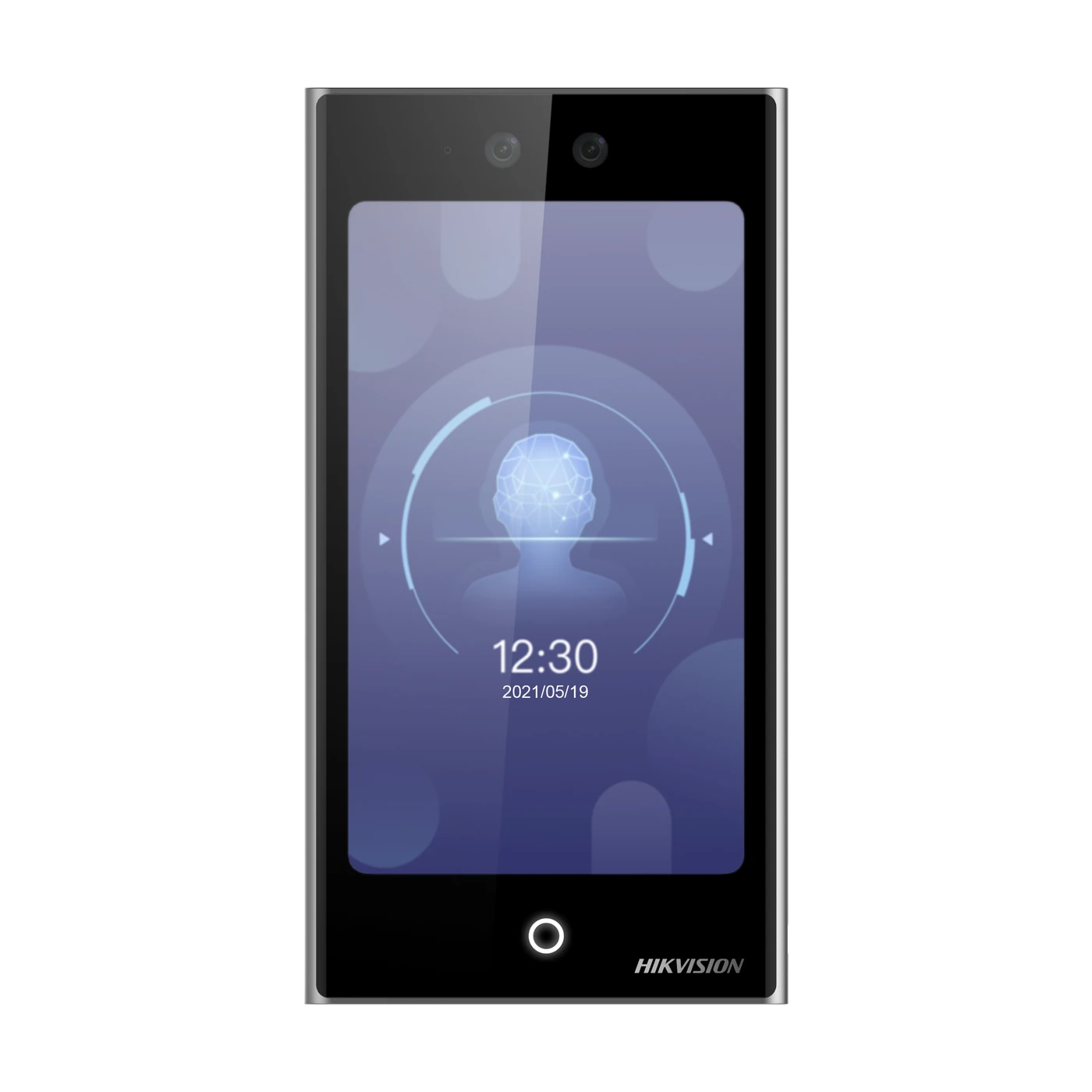

The Hikvision DS-K1T673 is the most capable terminal in this line-up, a 7-inch unit in Pro (D) and Ultra (TD) versions. Its 2 MP wide-angle lens recognises faces from 0.3 to 3 m in under 0.2 seconds, with an accuracy rate of 99% or more, recognises up to 5 people at once and detects face masks. Cards are read by presenting them on the screen, with M1, FeliCa and DESFire support.

Pro models store 10,000 faces and 50,000 cards; Ultra models store 100,000 faces and 500,000 cards. Versions add a fingerprint module and Bluetooth (DBWFX), 4G (G models), PoE (-E1), IP68 and IK07 protection (PRO models) or temperature screening (TDX-T). AIVIZ supplies the full DS-K1T673 range in Dubai and connects it to AiTime.

Enterprise & government

Ultra models hold 100,000 faces and 500,000 cards for very large sites.

High-security cards

DESFire and FeliCa support for sites that have moved beyond basic cards.

Harsh or remote sites

IP68 and IK07 PRO models, and 4G models where there is no network cable.

Key specifications

Figures from Hikvision's product information. Ask us which version suits each door.

Screen: 7-inch LCD touch screen
Camera: 2 MP wide-angle lens
Recognition: 0.3 to 3 m, under 0.2 s per person, accuracy 99% or more, mask detection, up to 5 people at once
Capacity, Pro (D): 10,000 faces, 50,000 cards, 150,000 events; 10,000 fingerprints with the fingerprint module
Capacity, Ultra (TD): 100,000 faces, 500,000 cards, 150,000 events; 10,000 fingerprints with the fingerprint module
Cards: M1, FeliCa and DESFire, presented on the screen
Protection: IP65 on most models; IP68 and IK07 on PRO models
Power & network: TCP/IP (IPv4 and IPv6); Wi-Fi on W models; 4G on G models; PoE on -E1 models
Temperature: TDX-T: 30–45 °C range, ±0.5 °C deviation, result shown on screen
SIP: Asterisk, 3CX, Elastix, miniSipServer, Brekeke, OpenSIPS, Kamailio
Software: ISAPI, ISUP 5.0, Push SDK, custom Wiegand; face duplicate check; attendance-only mode

DS-K1T673 models we supply

17 versions of the DS-K1T673. The letters in each model code tell you what it includes.

D / TD Pro (D) or Ultra (TD) version
B F Bluetooth and fingerprint (DBWFX models)
W / G Wi-Fi or 4G
-E1 PoE
PRO IP68 and IK07 protection
-T Temperature screening

Hikvision DS-K1T673 models and their features
Model	Series	Card	Fingerprint	Wi-Fi	PoE	Rating	Also
DS-K1T673DBWFX	Pro	M1 / FeliCa / DESFire	Fingerprint: yes	Wi-Fi: yes	PoE: no	IP65	Bluetooth
DS-K1T673DBWFX-QR	Pro	M1 / FeliCa / DESFire	Fingerprint: yes	Wi-Fi: yes	PoE: no	IP65	QR code, Bluetooth
DS-K1T673DG1X-E1	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: yes	IP65	4G
DS-K1T673DGX-E1	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: yes	IP65	4G
DS-K1T673DWX	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: no	IP65	—
DS-K1T673DWX-E1	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: yes	IP65	—
DS-K1T673DWX-PROE1	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: yes	IP68	IK07
DS-K1T673DX	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: no	IP65	—
DS-K1T673DX-E1	Pro	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: yes	IP65	—
DS-K1T673TDGX	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: no	IP65	4G, 100,000-face capacity
DS-K1T673TDWX	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: no	IP65	100,000-face capacity
DS-K1T673TDWX-E1	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: yes	IP65	100,000-face capacity
DS-K1T673TDWX-PRO	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: no	IP68	IK07, 100,000-face capacity
DS-K1T673TDWX-PROE1	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: yes	PoE: yes	IP68	IK07, 100,000-face capacity
DS-K1T673TDX	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: no	IP65	100,000-face capacity
DS-K1T673TDX-E1	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: yes	IP65	100,000-face capacity
DS-K1T673TDX-T	Ultra	M1 / FeliCa / DESFire	Fingerprint: no	Wi-Fi: no	PoE: no	—	Temperature screening, 100,000-face capacity

Employee attendance

Track attendance with the DS-K1T673 and AiTime

AIVIZ connects the DS-K1T673 to AiTime, our own time and attendance software. Every face, card or fingerprint punch becomes an attendance record, so you get shift reports, overtime and payroll-ready data without collecting logs by hand.

About AiTime Hikvision attendance software

Live attendance updates across all your locations
Shifts, leave and overtime in one place
Attendance data exported to payroll
On-premise or cloud set-up

DS-K1T673 questions

Common questions about the Hikvision DS-K1T673.

What is the difference between DS-K1T673 Pro (D) and Ultra (TD) models?

Capacity. Pro models such as the DS-K1T673DWX store 10,000 faces and 50,000 cards; Ultra models such as the DS-K1T673TDWX store 100,000 faces and 500,000 cards.

Is there a DS-K1T673 for outdoor or harsh locations?

Yes. Most models are IP65 rated, and the PRO models (DS-K1T673DWX-PROE1, DS-K1T673TDWX-PRO and DS-K1T673TDWX-PROE1) are IP68 and IK07 rated.

Which DS-K1T673 models work over 4G?

The G models: DS-K1T673DGX-E1, DS-K1T673DG1X-E1 and DS-K1T673TDGX.

Does the DS-K1T673 work with AiTime attendance software?

Yes. AIVIZ pairs Hikvision face recognition terminals with AiTime, our own time and attendance software. Punches from the terminal become attendance records in AiTime for shifts, leave, overtime and payroll export, and our team in Dubai sets up the connection for you.

Can AIVIZ install the DS-K1T673 in Dubai?

Yes. AIVIZ supplies the DS-K1T673 and installs it across Dubai and the UAE: mounting, cabling, door lock and exit button wiring, network setup, enrolling your staff and connecting it to your attendance or access control software.
